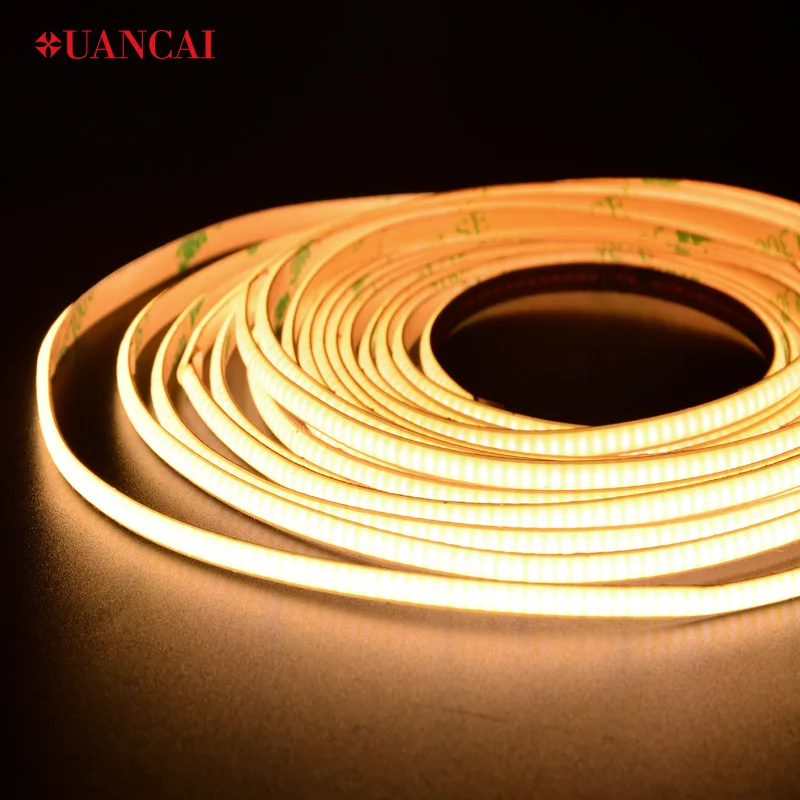

5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room

Name: 5WM 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car Room
Brand: XUANCAI
Price: 2.9 USD

Wholesale 5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room from china suppliers

Brand Name : XUANCAI

Model Number : 4MM Flexible COB LED Strip

Certification : CE ROHS LM-80

Place of Origin : China

MOQ : 5 meter

Price : $ 2.9-$ 3.5/meter

Payment Terms : T/T, Western Union, Paypal , Alibaba trade assurance

Supply Ability : 100000Meter / Month

Delivery Time : 3-5 days

Packaging Details : Blister box packaging

Type : Flexible COB LED Strip

Power : 5W/Meter

Voltage : DC24V/DC12V

CRI : 90

Lumens : 110-120LM/W

Color temperature : 2700K/3000k/4000k/6500K

LED Quantity : 480 Leds

Beam Angle : 180

Step Length : 25MM/50MM

Application : Bedroom Kitchen Home Indoor Lighting

Contact Now

4MM Narrow COB LED Strip Light For Car Light Room Decoration 5W/M 12V 24V LED COB Strip Light

Specification

5W/M 4mm Narrow COB LED Strip 180 Beam Angle IP20 For Car / Room

Product Information
Product Item	480Chips/m 4MM PCB COB LED STRIP
Dimension	5000mm*4mm
Chip Density	480chips/M
PCB Width	4mm
Voltage(V)	DC12V/ DC24V
Beam Angle	180°
Step Length	25MM/ 50MM
IP Grade	IP20

COB Strip Parameters

Working Voltage: DC12V /24V optional
2 Pin Wire, Red line(Live), black line(Neutral)
Support dimmer to control brightness :Yes with extra controller, available in store
Wattage: 5W/m. 0.5m=2.5W; 1m=5W; 2m=10W; 5m=25W

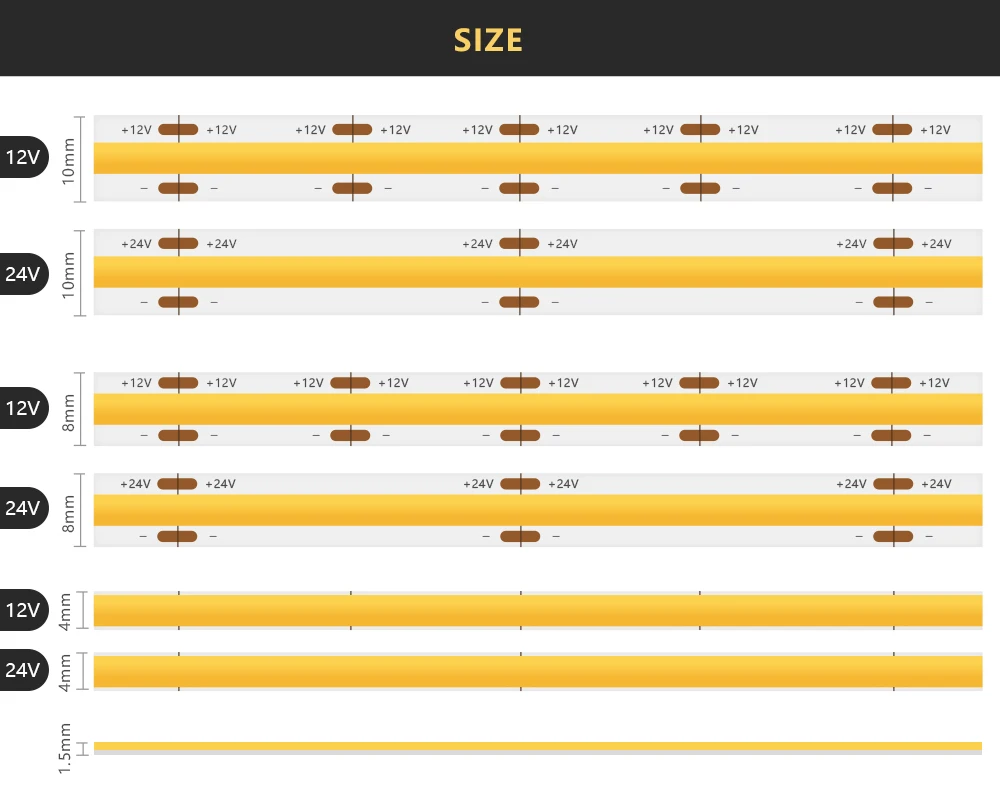

Strip Width: 4mm, Super Slim
LED quantity: 480 LEDs per Meter
Mix cut length: DC12V- every 25mm, DC24V-every 50mm
Color Rendering Index: Ra＞90
Operation temperature: -10℃-+60℃
Storage temperature: -10℃-+60℃
Beam angle: 180°
Waterproof Level: IP20, not waterproof.
 Lumen: 583LM/m for 3000K; 634LM/m for 4000K; 608LM/m for 6500K

Product Description

It is Flexible COB Strip light, you can change the shape of the light bar and install it according to your decoration design

Advantages as below:
Uniform illumination, dot free
better light decay
better heat-dissipation
High color efficiency
Waterproof: IP20-IP67
can be built-in aluminum profile with PC cover

Related Products

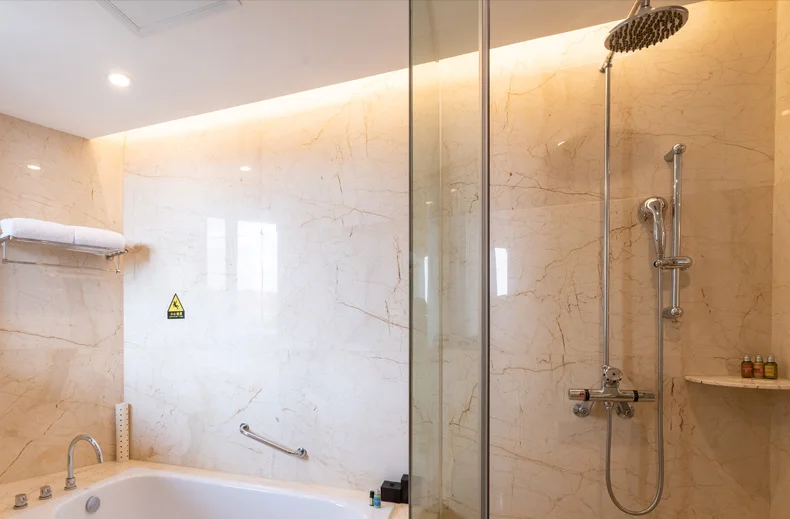

Application

Lighting the city skyline,such as building,advertising walls,signs,christmas decorations......2.Decoration of irregular design body,such as polygonal wall,water drop and ceiling groove design of hotel/night club/KTV ......
Home dark groove edge,such as door frame,bar,wine cabinet,wardrobe,TV cabinet......
Car beauty,such as body and underside......

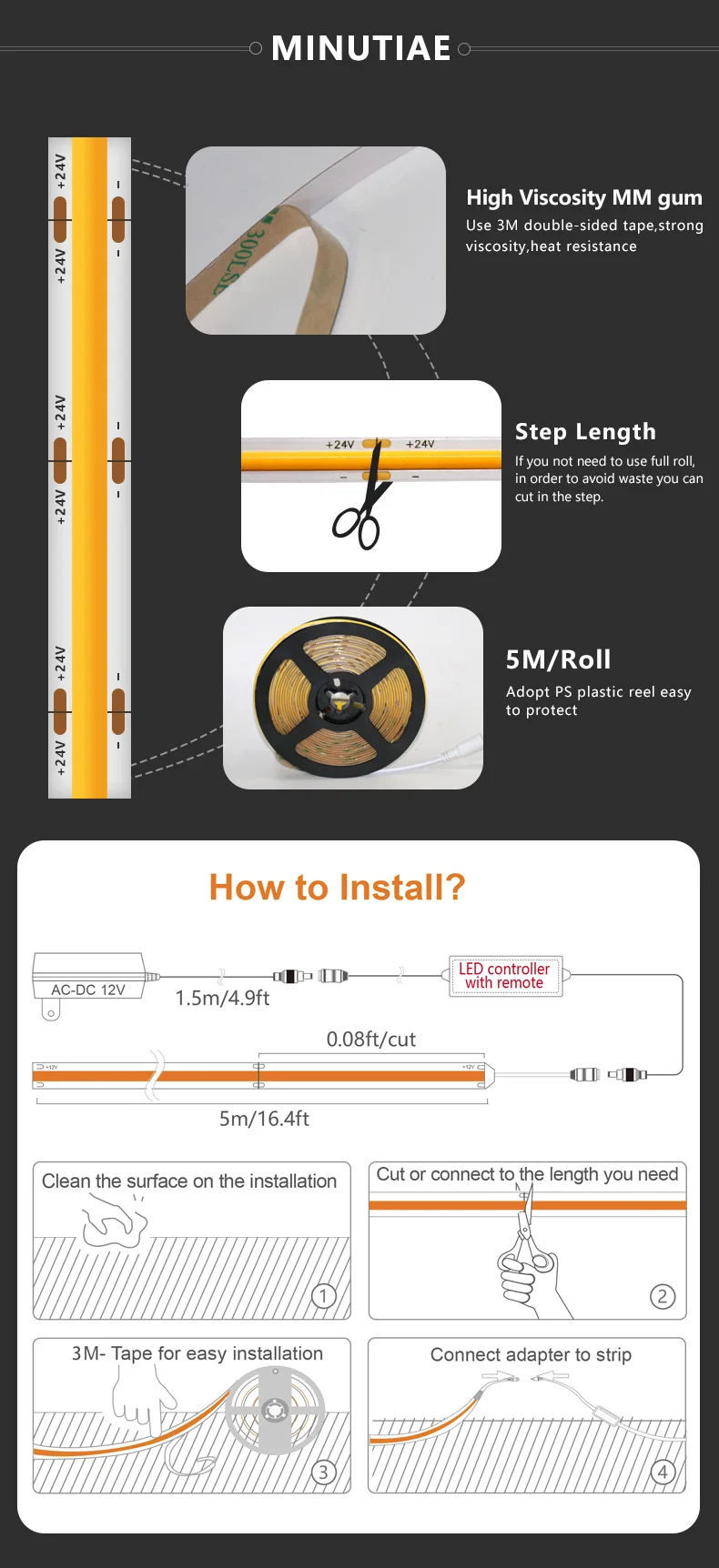

How To Install

The advantages of FOB COB LED STRIP

Genuine 3M Adhesive

Easy to Install, Use high-quality 3M adhesive backing with heat resistance, strong viscosity and integration

Easy to CUT ( 1.78ft /cut)

NOTE : Total wattage of the LED strip should not exceed the maximum wattage of the power adapter

Customers feedback

1. These are much better when used as under cabinet lighting than the standard chip style. Especially with reflective countertops. It's much more uniform and clean looking in the reflection. I install many strips through my electrical business. These were very great.

2. My customer is so happy with this lighting. The leds are bright and dimmable and a great white shade., not blue or amber. Most importantly they are a solid light, no dots. Looks very high end. This is the only led strip lighting I will install from now on.

3. I have used a ton of other products from skye and this is by far my favorite. It looks awesome without all the individual diodes. I used a 24v transformer and made sure the wattage was rated higher that the 3w per ft I planned to use. These bend much tighter and are more flexible than other brands if used as well. I combine these with aluminum channels I buy from amazon to make them look like a fixture, including inside and outside corners.
Awesome light

4. Great tape lighting...such an upgrade from the "dotted" style. Would HIGHLY recommend this product for under cabinet, under counter, around mirrors in bathrooms, etc.

5. I normally don't write reports but I was surprised for good about this product. Unbelieved brightness. Consider using a dimmer to control the bright. For sure I will buy a few more for my home project.
